Custom File System

Note: When you update the file system, the files in the previous system (including all original files and converted markdown files of your sections/documents, as well as all static files) will not be automatically migrated to the new file system. You need to migrate them manually. Therefore, switching file systems is a major operation and generally should be done right after account creation. Avoid changing it later whenever possible.

Revornix supports custom file storage locations. The currently supported options are:

Built-in Minio service
Alibaba Cloud OSS
Generic S3-compatible services
Amazon S3

How to Add

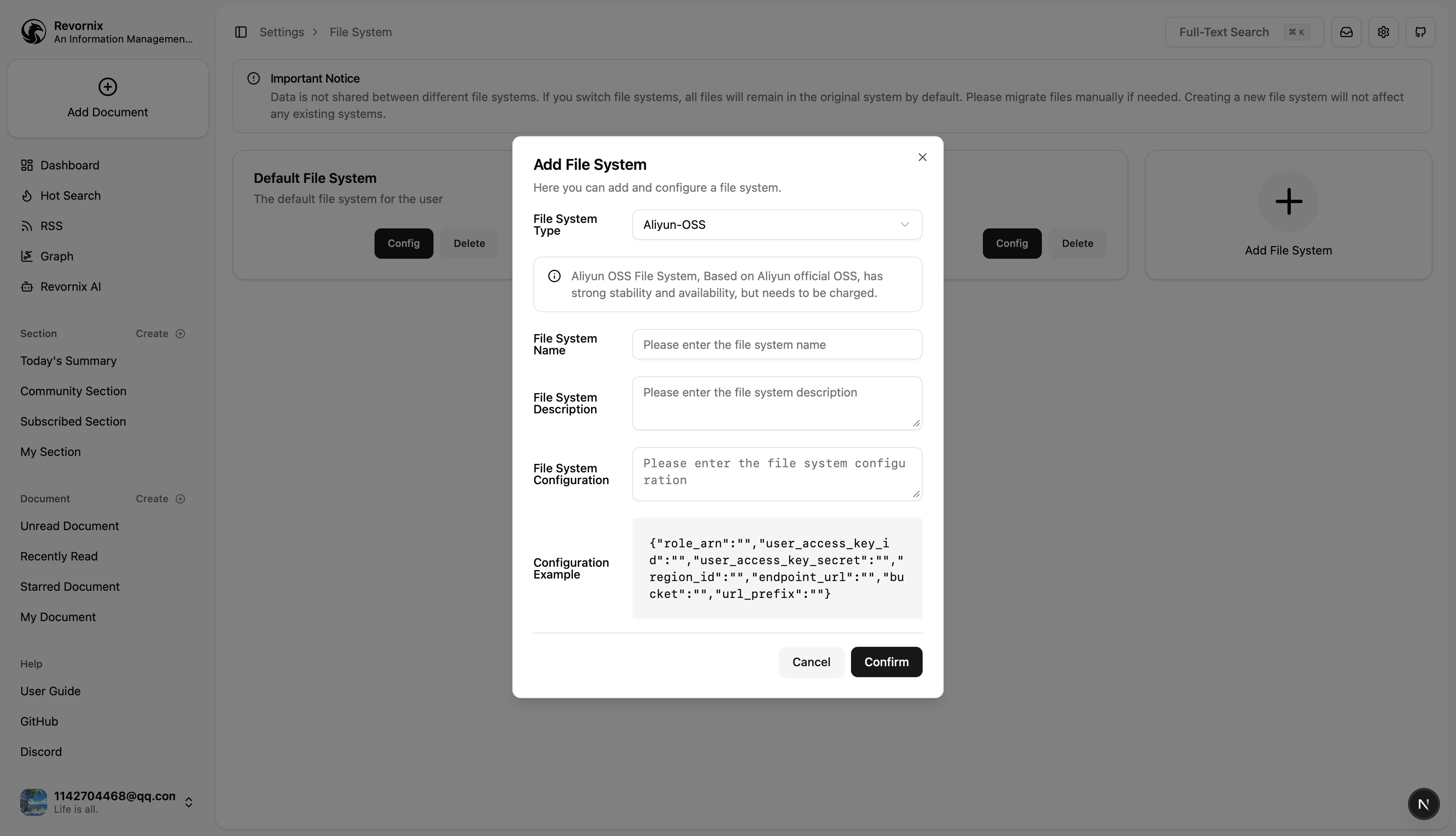

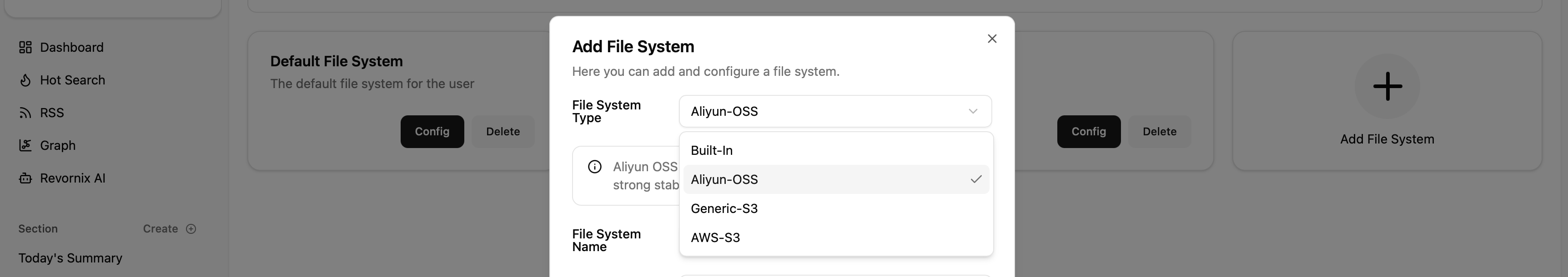

Adding a file system is very simple. Go to the Settings page, click the “Go to Manage” button next to Mine File Systems under the “File Settings” group. Then click “Add File System” to add a new one.

Configuration Parameters Explanation

Built-in Minio Service

This is the default storage mode of Revornix and requires no configuration.

Alibaba Cloud OSS

This storage mode uses the STS authorization scheme to ensure minimal permissions. For details, refer to the official Alibaba Cloud documentation: https://help.aliyun.com/zh/oss/developer-reference/use-temporary-access-credentials-provided-by-sts-to-access-oss

Steps

Creating a bucket in Alibaba Cloud OSS is straightforward, so details are omitted. Make sure to enable public read access.

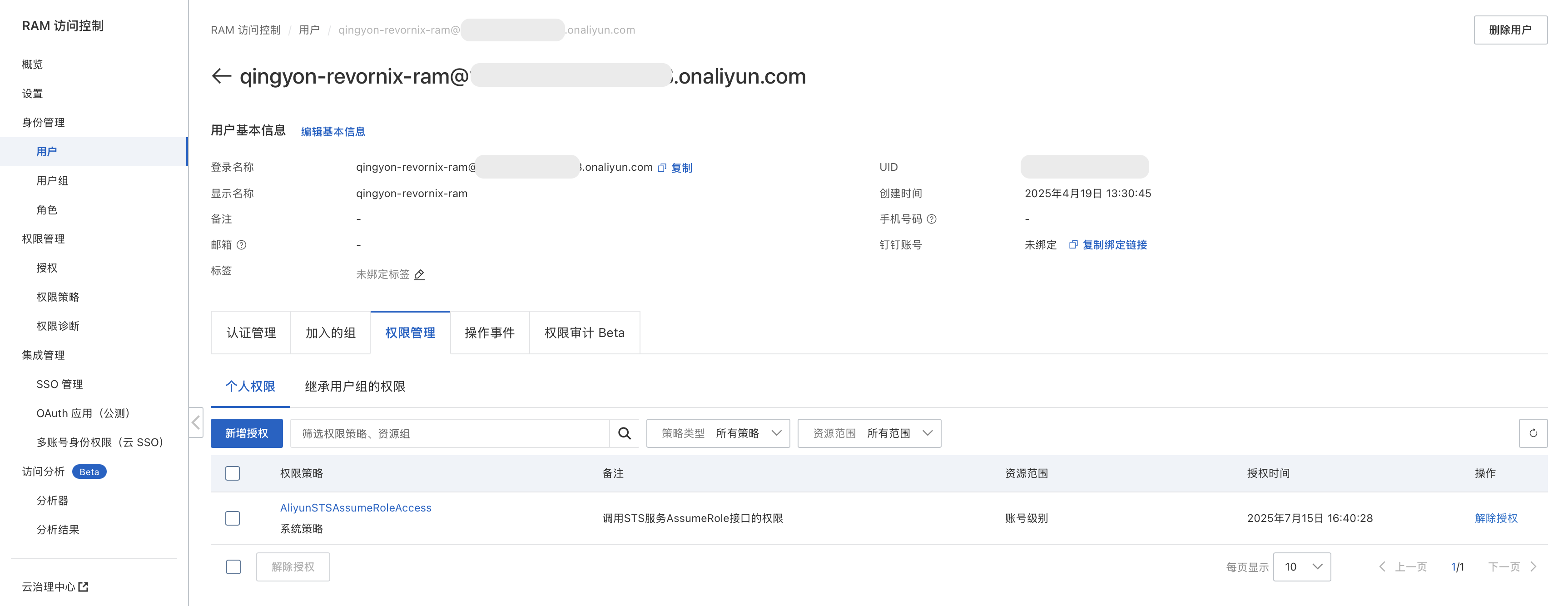

Create a User

Based on the principle of least privilege, this user only needs permission to assume an STS temporary role. The specific authorization is explained in Step 5.

Create a Role

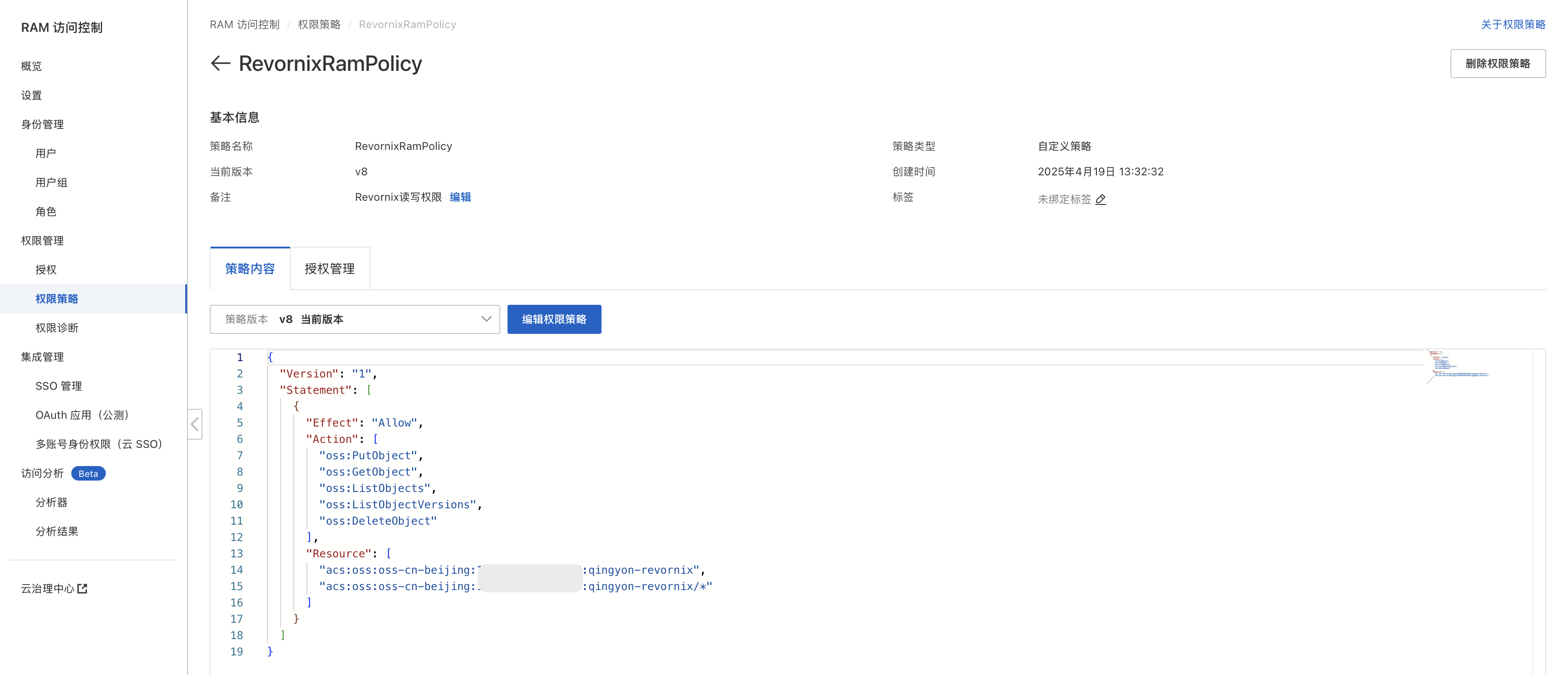

Create a Policy

Match your own bucket and user with the permissions and resource group shown below. Missing any of them may cause failures.

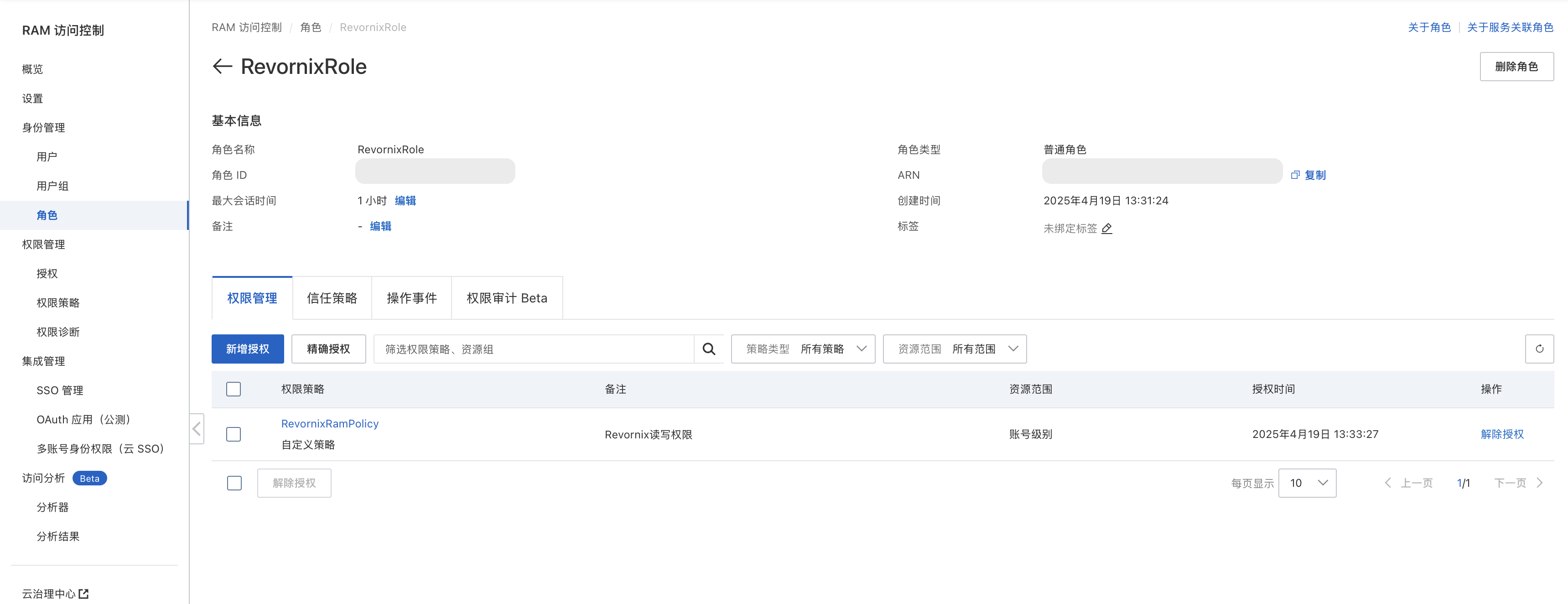

Attach the Created Policy to the Role

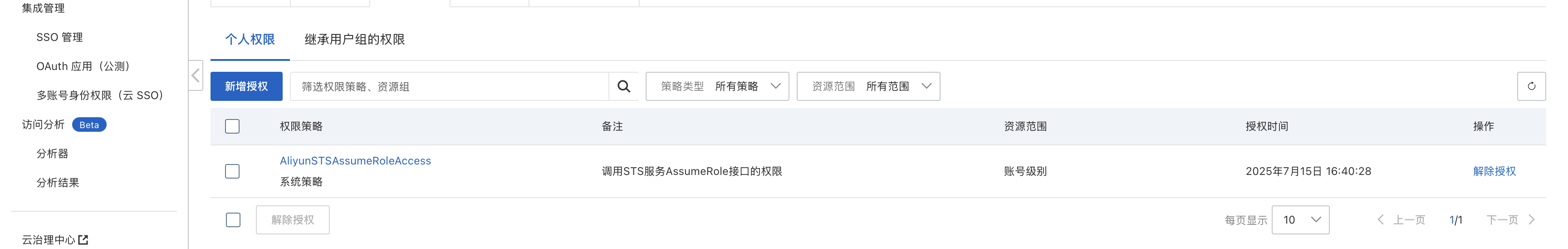

Grant the User Permission to Assume the Role

Parameter Description for Alibaba Cloud OSS in Revornix

Parameter	Type	Description
user_access_key_id	string	The AccessKeyID of the Alibaba Cloud user, obtainable in the console
user_access_key_secret	string	The AccessKeySecret of the Alibaba Cloud user, obtainable in the console
role_arn	string	The ARN of the assumed role
region_id	string	The `region_id` of the OSS bucket
endpoint_url	string	The `endpoint_url` of the OSS bucket
bucket	string	The OSS bucket name, viewable in https://oss.console.aliyun.com/bucket
url_prefix	string	The external access URL, viewable in https://oss.console.aliyun.com/bucket

Amazon S3

This storage mode uses the STS authorization scheme to ensure minimal permissions. For detailed setup, refer to this Medium article: https://bharat-singh-06.medium.com/access-s3-bucket-through-sts-security-token-service-f6c613b5db5f

Steps

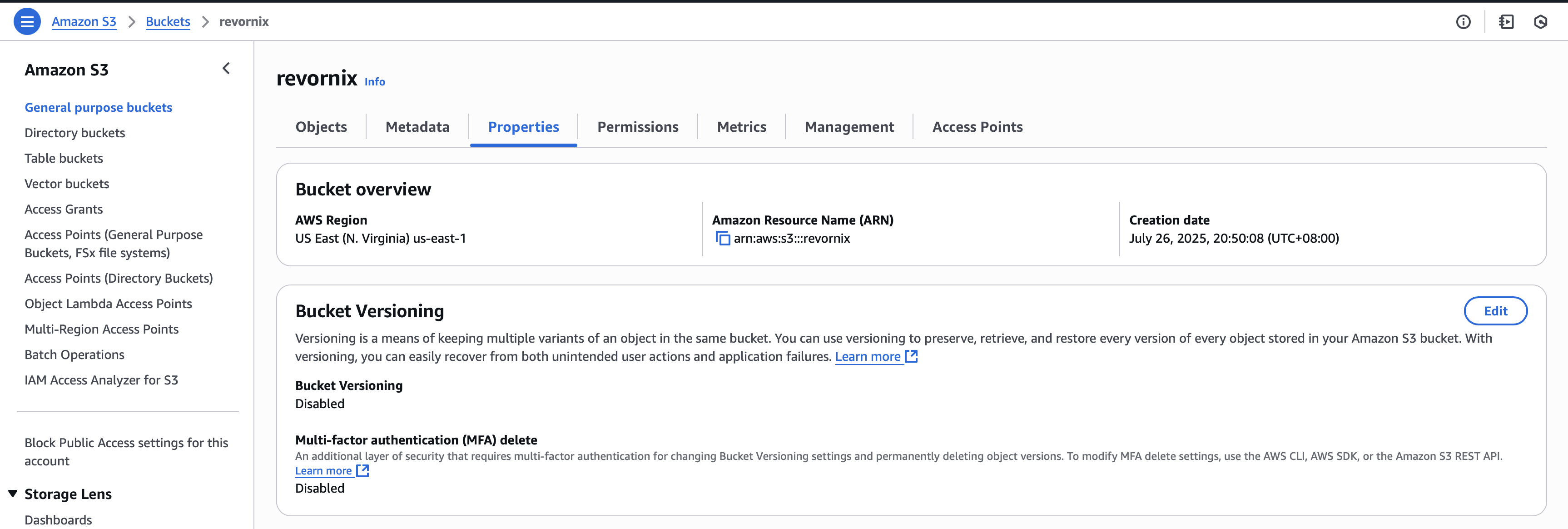

Creating a bucket in AWS S3 is also straightforward, so details are omitted. Make sure to configure permissions correctly. The following are example configurations:

Bucket Policy:


{
	"Version": "2012-10-17",
	"Statement": [
		{
			"Sid": "Statement1",
			"Effect": "Allow",
			"Principal": "*",
			"Action": "s3:GetObject",
			"Resource": "arn:aws:s3:::your_bucket_name/*"
		}
	]
}

CORS Configuration:


[
	{
		"AllowedHeaders": ["*"],
		"AllowedMethods": ["POST", "GET"],
		"AllowedOrigins": ["*"],
		"ExposeHeaders": ["ETag"],
		"MaxAgeSeconds": 3000
	}
]

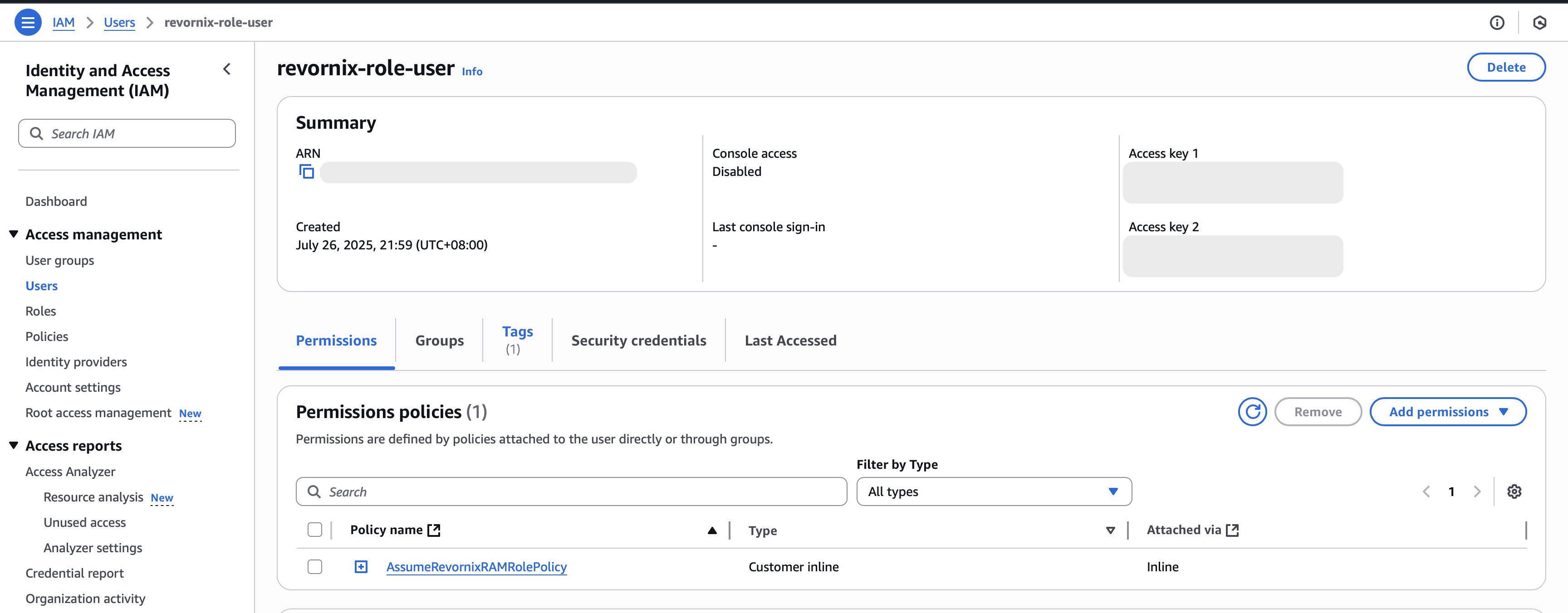

Create a User

Create a Role

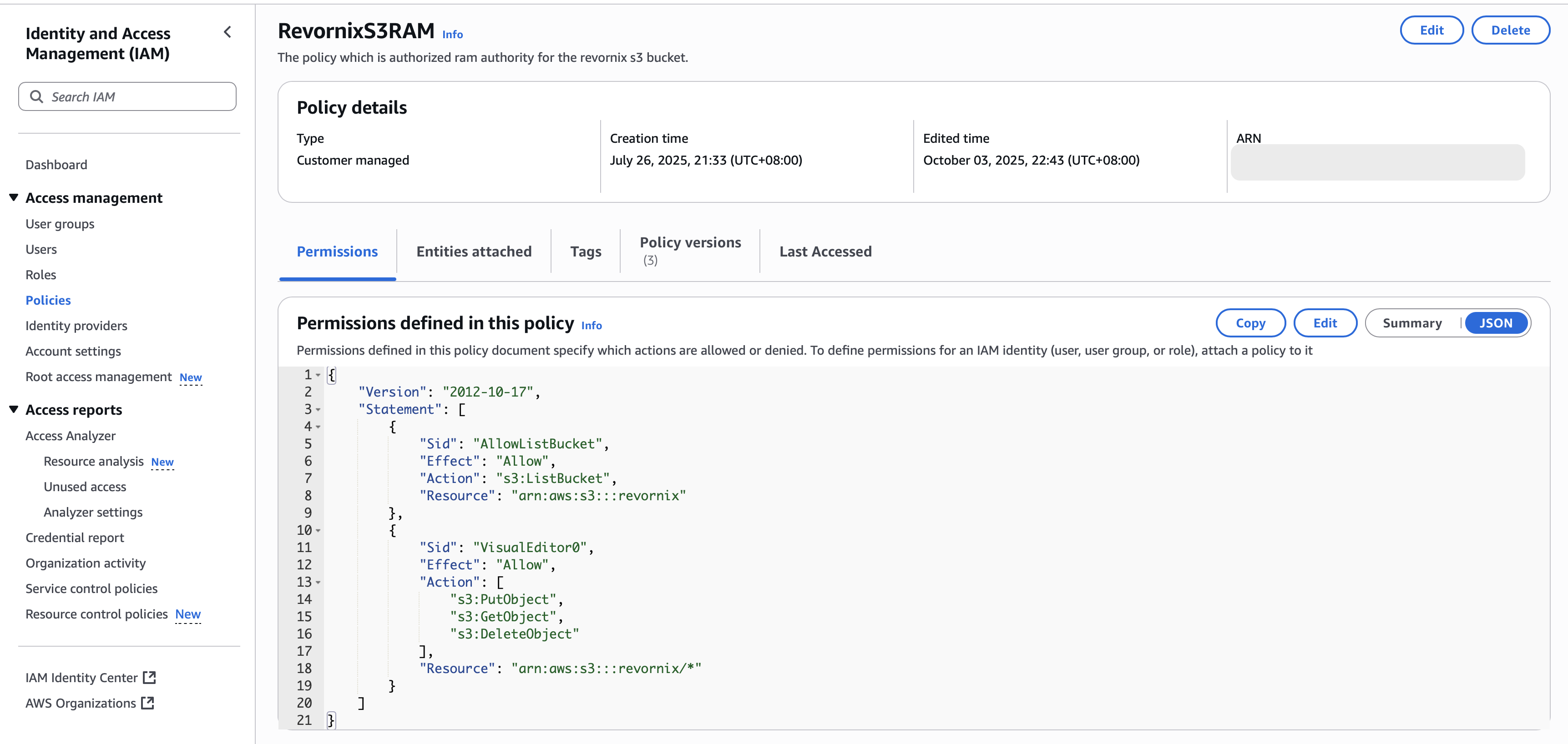

Create a Policy

Make sure to strictly follow the permissions and resources shown in the example, and adapt them according to your own resource group.

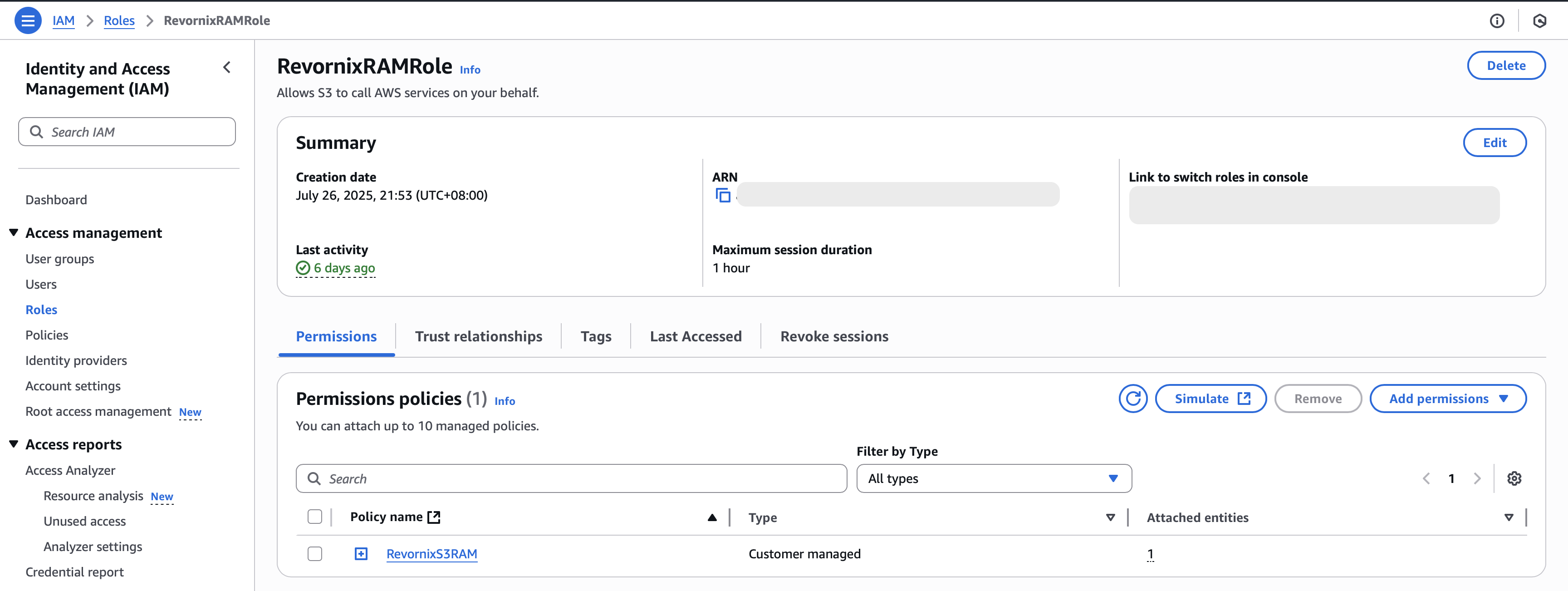

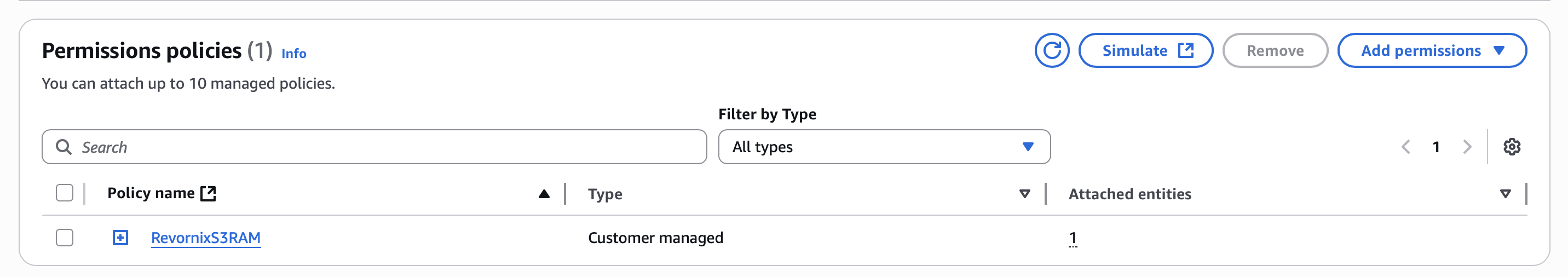

Attach the Created Policy to the Role

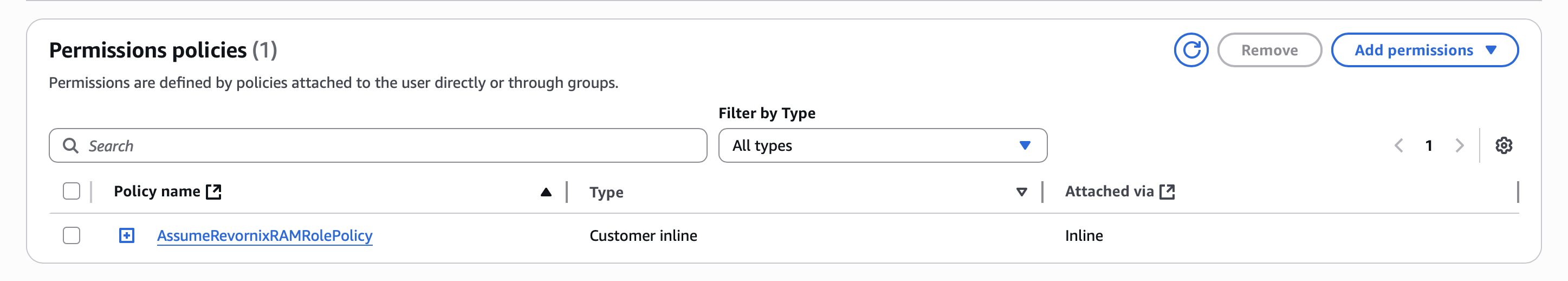

Grant the User Permission to Assume the Role

Parameter Description for AWS S3 Storage System in Revornix

Parameter Name	Type	Description
role_arn	string	The ARN of the assumed role
user_access_key_id	string	The user’s AccessKeyID, viewable on the user detail page
user_access_key_secret	string	The user’s AccessKeySecret, viewable on the user detail page
region_name	string	The bucket’s region_name
bucket	string	The bucket name
url_prefix	string	The external static access URL

Generic S3-Compatible Services

Any service that supports the S3 protocol can use this option.

Note: In this mode, the corresponding user must have full OSS operation permissions, including upload, download, delete, and list. Since these permissions are overly broad, it is not recommended to use this method unless necessary. If you must use another platform that is not officially supported yet, you may temporarily use this generic mode as a workaround.

Parameter Name	Type	Description
user_access_key_id	string	The user’s AccessKeyID, viewable in the corresponding third-party user management system
user_access_key_secret	string	The user’s AccessKeySecret, viewable in the corresponding third-party user management system
region_name	string	The bucket’s region_id
endpoint_url	string	The bucket’s endpoint_url
url_prefix	string	The external static access URL
